E3 Series
E3 Series
Features: Excellent Processing Properties, Fast Setting Time, No Migration, Excellent Transparency, Easy for Electroplating and Printing.

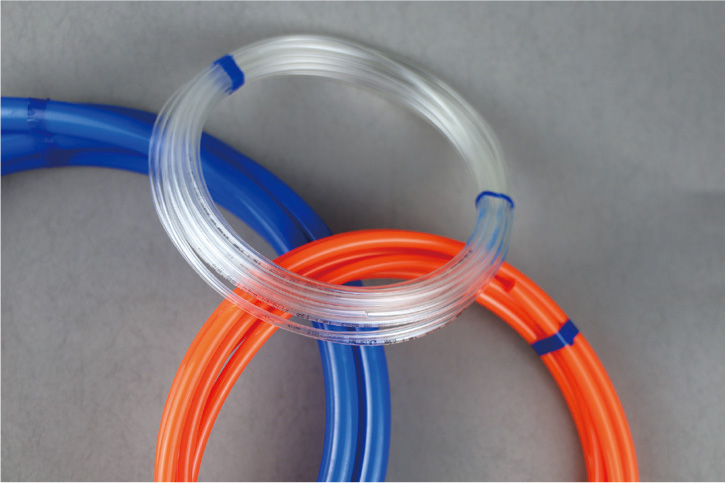

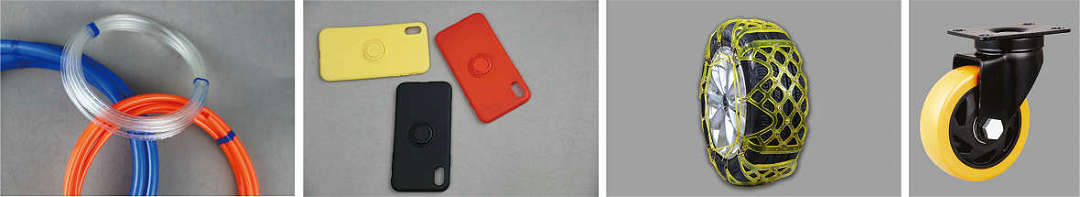

Applications: Phone&Pad Cover, Footwear, Compounding&Modification, Wheel & Caster, Pneumatic Tube, Overmolding, Tapes, Tyre Chain, Films etc.
| Properties | Standard | Unit | E380 | E385 | E390 | E395 | E355D |
| Density | ASTM D792 | g/cm3 | 1.19 | 1.2 | 1.2 | 1.21 | 1.21 |
| Hardness | ASTM D2240 | A/D | 83/- | 87/- | 93/- | 95/- | -/55 |
| Tensile Strength | ASTM D412 | MPa | 35 | 40 | 40 | 45 | 45 |
| 100% Modulus | ASTM D412 | MPa | 5 | 6 | 10 | 13 | 15 |
| 300% Modulus | ASTM D412 | MPa | 9 | 10 | 13 | 22 | 23 |
| Elongation at Break | ASTM D412 | % | 550 | 500 | 450 | 400 | 400 |
| Tear Strength | ASTM D624 | kN/m | 110 | 115 | 130 | 145 | 150 |
| Tg | DSC | °C | -25 | -25 | -20 | -15 | -12 |
NOTE: The above values are shown as typical values and should not be used as specifications.
