E1 Series
E1 Series
Features: Excellent Abrasion Resistance, Oil/Chemicals Resistance, Good Resilience Performance, High Pressure Resistance, Outstanding Mechanical Properties.

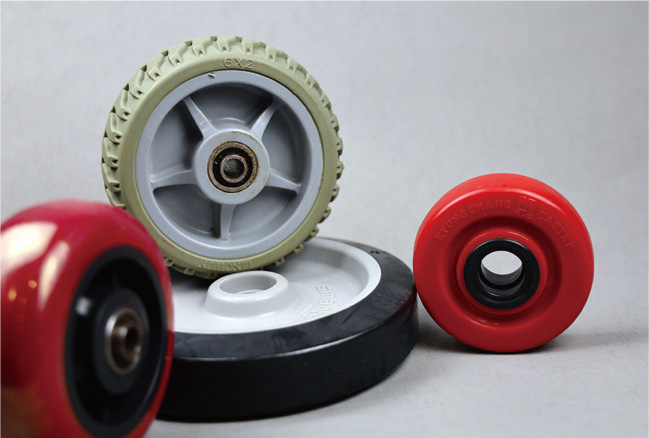

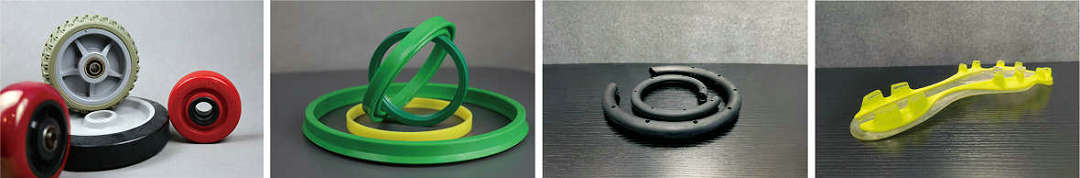

Applications: Conveyor Belt, Hose&Tube, Seal&Gasket, Compounding, Wire&Cable, Automotive, Footwear, Caster, Film, Overmolding, etc.
| Properties | Standard | Unit | E175 | E180 | E185 | E190 | E195 | E155D | E165D | E175D | |
| Density | ASTM D792 | g/cm3 | 1.18 | 1.19 | 1.19 | 1.19 | 1.2 | 1.21 | 1.21 | 1.22 | |
| Hardness | ASTM D2240 | A/D | 75/- | 82/- | 86/- | 92/- | 95/- | -/55 | -/65 | -/75 | |
| Tensile Strength | ASTM D412 | MPa | 22 | 35 | 40 | 45 | 50 | 52 | 55 | 60 | |
| 100% Modulus | ASTM D412 | MPa | 3 | 5 | 7 | 10 | 15 | 16 | 22 | 35 | |
| 300% Modulus | ASTM D412 | MPa | 7 | 12 | 15 | 24 | 35 | 38 | 40 | 43 | |
| Elongation at Break | ASTM D412 | % | 600 | 550 | 500 | 450 | 400 | 380 | 350 | 300 | |
| Tear Strength | ASTM D624 | kN/m | 75 | 100 | 120 | 140 | 160 | 180 | 200 | 240 | |
| DIN Abrasion Loss | DIN 53516 | mm3 | / | 30 | 30 | 35 | 35 | 35 | 35 | 30 | |
| Tg | DSC | °C | -42 | -40 | -37 | -32 | -30 | -26 | -22 | -15 | |
| Compression Set |
72 hours @23 °C |
ASTMD395 | % | / | 32 | 30 | 28 | 25 | 24 | 21 | 18 |
|
22 hours@70 °C |
% | / | 40 | 38 | 36 | 35 | 33 | 30 | 28 | ||
NOTE: The above values are shown as typical values and should not be used as specifications.
